Walk Doors

Standard Sub-Frame Walk Door features include:



• 20 Gauge, Galvanized, Insulated Door Leaf on 3070 (18 gauge on 4070 and 6070)
• 5 3/4", Aluminum Threshold - ADA Compliant

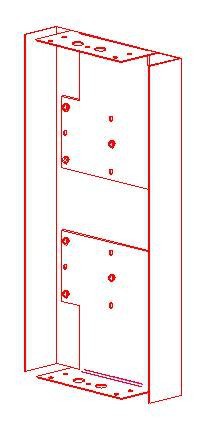

• 16 Gauge, Galvanized Subframe (Framed Opening). Sized to Match Girt Depth.
• Cylindrical Lever/Lever Lock Set - Grade 2 (26D Finish)

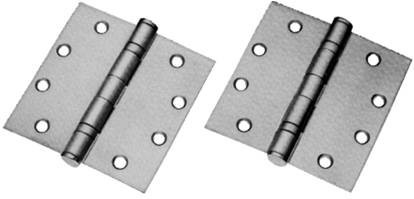

• (3) Ball-Bearing Hinges - 4 1/2" x 4 1/2" with a Non-Removable Pin (26D Finish)
• Bottom Door Sweep with Drip Channel
• Adjustable Full Aluminum Channel
• Weatherseal
• All fasteners and Anchors Included for Complete Installation
• Each Door System is Packaged in Heavy Duty Wood Crate

3 x 7 Walk Door
3070 Sub-Frame Walk Door comes complete with lever/lever lock-set. No additional framing or material necessary. Ready to install. (Glass options sold separately)

PRICE: $629.00

4 x 7 Walk Door
4070 Sub-Frame Walk Door comes complete with lever/lever lock-set. No additional framing or material necessary. Ready to install.  (Glass options sold separately)

 PRICE: $746.00



6 x 7 Walk Door
6070 Sub-Frame Walk Door comes complete with lever/lever lock-set. No additional framing or material necessary. Ready to install. (Glass options sold separately)

PRICE: $1030.00

• 18 Gauge, Galvanized,  Insulated Door Leafs
• 5 ¾", 16 Gauge, Galvanized, Insulated, Door Frame
• 16 Gauge, Galvanized - Z  Astragal - Attached to Inactive Leaf
• 16 Gauge, Galvanized Subframe (Framed Opening). Sized to Match Girt Depth
• (1) Cylindrical Lever Lock - Grade 2 (26D Finish) UL Rated - Installed on Active Leaf Only
• (2) Surface Bolts (Top and Bottom) Attached to Inactive Leaf (26D Finish)
• (6) Ball-Bearing Hinges 4 ½" x 4 ½" with a Non-Removable Pin (26D Finish)
• 5 ¾", Aluminum Threshold - ADA Compliant
• (2) Door Bottom Sweeps with Drip Channel
• Adjustable Full Aluminum Channel Weatherseal
• 12 Gauge, Galvanized, Adjustable Mounting Clips
• Packaging - Each Door System is Packaged in Heavy Duty Wood Crating
• All Fasteners and Anchors Included for Complete Installation

6 x 7 Walk Door with Both Leaves Active
Complete 6070 Sub-Frame Walk Door with Both Leaves Active.
Hardware Includes: (2) Grade 3 Closers, (2) Standard Panics and Removable Mullion. No additional framing or material necessary. Ready to install. (Glass options sold separate).

PRICE: $2,065.00



•  18 Gauge, Galvanized, Insulated Door Leafs
• 5 ¾", 16 Gauge, Galvanized, Insulated, Door Frame
• 16 Gauge, Galvanized - Z Astragal - Attached to Inactive Leaf
• 16 Gauge, Galvanized Subframe (Framed Opening). Sized to Match Girt Depth
• (2) Cylindrical Lever Lock - Grade 2 (26D Finish) UL Rated -
• (2) Surface Bolts (Top and Bottom) Attached to Inactive Leaf (26D Finish)
• (6) Ball-Bearing Hinges 4 ½" x 4 ½" with a Non-Removable Pin (26D Finish)
• 5 ¾", Aluminum Threshold - ADA Compliant
• (2) Door Bottom Sweeps with Drip Channel
• Adjustable Full Aluminum Channel Weatherseal
• 12 Gauge, Galvanized, Adjustable Mounting Clips
• Packaging - Each Door System is Packaged in Heavy Duty Wood Crating
• All Fasteners and Anchors Included for Complete Installation



Painted, any color (includes jamb painting).

$ 178.00

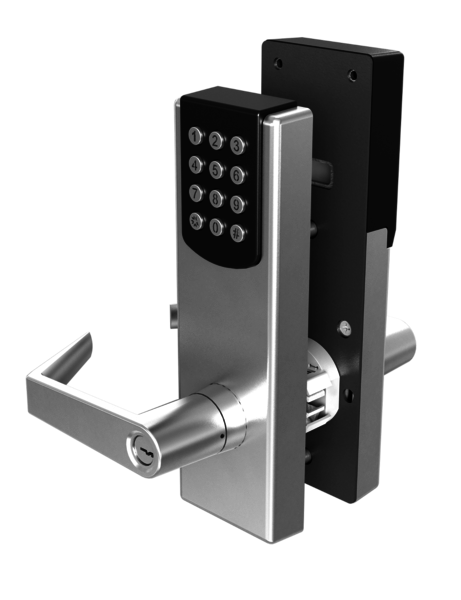

Keyless Entry Stand-Alone (Offline) Cylindrical Locksets.

$ 496.00

Auto Closure Grade 3 with standard parallel arm.

$ 94.00

Auto Closer - Grade 1 Heavy Duty with standard parallel arm.

Price $ 144.00

Heavy duty panic rim device. Outside keyed, powder coated aluminum finish.

Price $ 449.00

Kick Plate for Walk Door. 8" high by 34" long. Satin Chrome Finish. (order one per leaf)

Price $ 74.00

Stainless Steel Ball Bearing Hinges 4"x16" satin chrome finish

Price $ 39.00

Subjamb extensions for girt heights 7' - 6" to 10' - 0". Jamb girt extensions are required for metal walls where the girt height is over 7' - 6" for attachment.

Price $ 46.00

24" x 30" Window Lite Kit with 1" insulated glass. Available in white only.

Price $ 186.00



6" x 30" Window Lite Kit with 1" insulated glass.

Price $ 105.00
